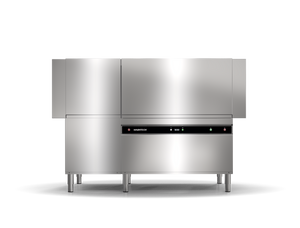

Versatile Conveyor Dishwasher
- External Dimensions:
2,100mm (L) x 1,455mm (H) x 765mm (W)
- Wash Capacity:
180 racks per hour (3,240 plates)
- Water Consumption:
240 litres per hour
- Power Requirements:
3-phase, 28 amp
- Heavy-duty stainless steel construction and componentry
- Electromechanical controls with dual-speed control and automatic start/stop
CD180 is constructed from heavy-duty stainless steel, and uses heavy-duty stainless steel componentry throughout the system. The dual-track stainless steel pawl drive enables smooth conveyor operation, and electromechanical controls and high performance pumps deliver superior reliability and longevity.
CD180’s wide counterbalanced doors, open pawl drive architecture and easy-to-remove wash arm cassettes simplify cleaning and maintenance procedures. The functional design ethos embodied in Washtech’s common conveyor platform delivers a highly serviceable system to ensure maximum uptime.
CD180 is available with an optional heat recovery unit, which condenses steam emissions to recirculate heat energy through incoming rinse water. This reduces the power required to heat water for the final rinse stage by up to 45%.
FUNCTIONAL MODERN FEATURES
Automatic start/stop conserves power and water when no items are passing through the dishwasher. Dual-speed control enables operators to switch between two custom speed presets on-the-fly.
A COMPLETE SYSTEM SOLUTION
Washtech offers numerous build-to-order options that can tailor a system to your needs or site conditions. A wide range of system accessories is also available to optimise loading/unloading procedures, maximise utilisation of space, automate the drying process and more.
WARRANTY, SERVICE & SUPPORT
Your CD180 and associated accessories are covered by Moffat’s 5-2-1 warranty and 15 years of guaranteed parts availability. Moffat and its network of authorised service providers offer 24/7 service and support throughout Australia.
- 2 x 500mm dish rack (600 70028)
- 2 x 500mm cup rack (600 70029)
- 2 x cutlery container (C660503)
- Cutlery basket (C660508)
